Roof farm automatic irrigation system accessories

Compare with ground farming in water utilization, roof farm has difference as following

1 The soil layer of roof farm is thinner which is difficult to maintain soil moisture.

2 The evaporation of water in roof farm soil layer will be faster due to the stronger wind.

3 Therefore, to maintain soil moisture in roof farm, it will be harder for artificial irrigation

4 Water supply inconvenience for High-rise building

Therefore, without appropriated irrigation, the plant of roof farm has low survival rate caused by root rotted and dried-up. Roof farm automatic irrigation system water-saving irrigation system can improve water saving and provide the best soil humidity for plant growing.

Water-saving irrigation system includes sprinkling irrigation, micro spray irrigation and trickle irrigation.

1、sprinkling irrigation

Advantages

Large coverage area, uniformly sprays, Rinse leaves

The underground design of device makes roof farm landscape beautiful.

Disadvantages

Merely appropriate for lawn and low-growing plant. Tall growing plant will prevent irrigation water. The thickness of soil layer should be more than 25mm.

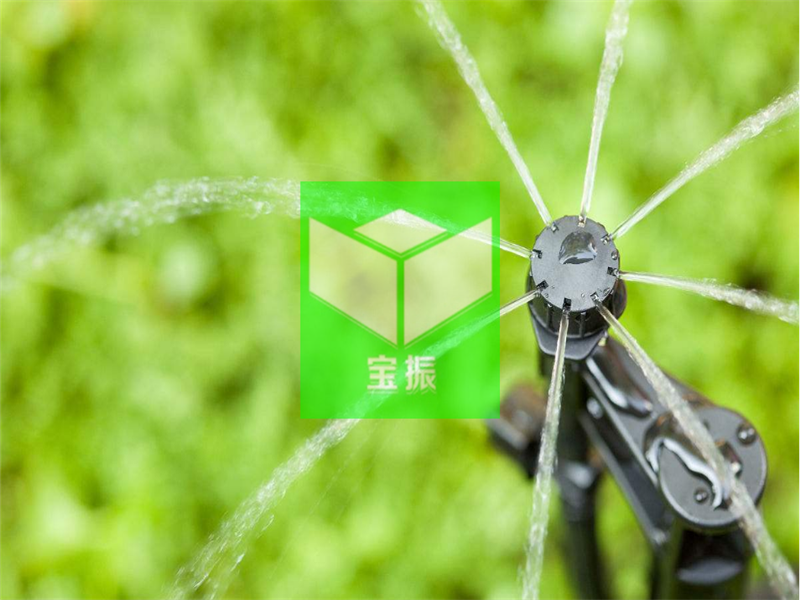

2、Micro spray irrigation

Advantages

Easier installation and construction

Spraying area is smaller which is suitable for the complex terrain of the roof greening.

It required shallower matrix (less than 20mm)

Sprayer is easily aging and blows down by wind or human activity.

3、trickle irrigation

Advantages

Small flow, maximum saving water of irrigation system

Water supply inconvenience

No disturbance by wind

Appropriate for Vegetation, Shrubs and Trees

Disadvantages

The water should be high quality. If water contains suspended material, it will block drip irrigation emitter.

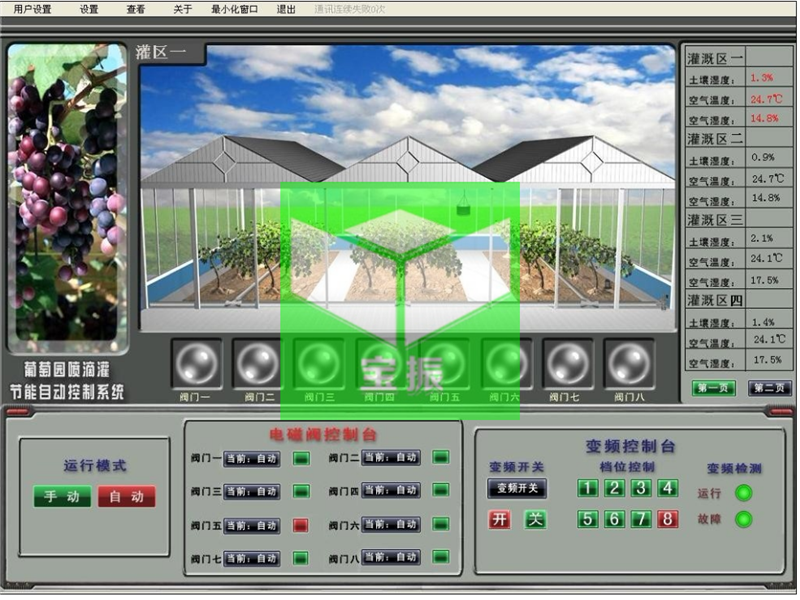

Selecting the appropriate irrigation system and setting up automatic control which can make irrigation more efficient and convenient.

Through the setting of automatic controller, it precisely controlled timing and quantity of irrigation to meet the irrigation requirements of roof and save manpower.

In addition, the controller can automatically operate irrigation by program during the day and night.

The automatic control system is divided into AC-control system and DC-control system according by power supply mode.

Ac control system needs to be connected with the power supply.

The general controller centralized control multiple solenoid valves. Between the controller and solenoid valve need to connected by line.

Direct current control system does not need to be connected to ac power supply. Battery and solar power supply for irrigation valve.

With the development of network technology, tickle irrigation will be more intelligent.

We optimized the automatic control of the irrigation system as following,

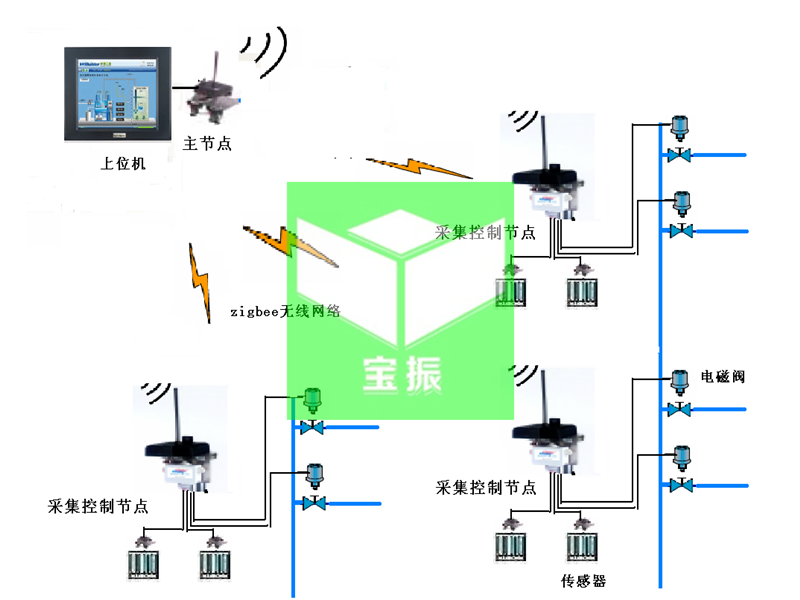

Network central control system——Internet technical automatic control system

Combine with mobile phone. Remote control and management

Diagnosis and warning of abnormal plant growth

Intelligent regulated irrigation based on meteorological data

Achieve automatic irrigation and fertilization according to plant nutrients requirement.
